IR prijímač alebo diaľkové ovládanie PC
je to úplne jednoduché a lacné zapojenie
Ide o jednoduché zapojenie ktoré slúži na ovládanie PC pomocou ľubovoľného infračerveného ovládača
Popis funkcie
Zapojenie využíva integrovaný infračervený prijímač používaný pre prijem modulovaného signálu. Ten obsahuje obvody potrebne na prijem a demoduláciu infračerveného signálu. Z jeho výstupu dostaneme už čistý digitálny signál (obálka amplitudovo modulovaného signálu vysielača). Použiteľne sú prijímače typu SFH56-xx a TSOP17xx . Obvody typu SFH56-xx sa už iba dopredávajú (koniec výroby). Číslo "xx" znamená použitú frekvenciu príjmu. Záujemcovia o detaily týchto obvodov nájdu v datasheetoch na internete. Obvod je napájaný priamo zo sériového portu počítača - z vývodu RTS. Stabilizáciu napätia na 5V zabezpečuje zenerová dióda D1. Je zapojená bez obmezdovacieho odporu, lebo využíva skutočnosť, že sériový port ma prúdové obmedzenie cca 10mA. V prvej verzii bol obmedzovaci rezistor použitý, ale prejavil sa nedostatok napätia pri použití v notebookoch. Tie totiž poskytujú signálové úrovne asi +/-6V a úbytok na rezistore spôsobil nespolahlivý prijem signálu (z rovnakého dôvodu nemožno použiť stabilizátory typu 7805, ktoré majú min. úbytok asi 2V).
Kondenzátor C1 je filtracny (odberove spicky). Rezistor R1 predstavuje pull-up podla doporucenia vyrobcu TSOP17xx. Vystup prijimaca je vyvedeny na signal DSR serioveho portu, kde sa softwarovo prijima. Obsluzny driver je rieseny ako plug-in modul "IgorPlug.dll" do programu Girder, ktoremu posiela prijimany kod. Girder nasledne vykona funkciu, ktoru sme si zvolili. Priradzovanie vyslaneho kodu k danej akcii prabieha tzv. ucenim nasledovne: V programe Girder vytvorime danu akciu a potom stlacime tlacitko "Learn Event" (obr.). Nasledne na vysielaci DO stlacime tlacitko, cim sa prijme kod a priradi sa danej akcii. Funkcnost akcie otestujeme stlacenim rovnakeho tlacitka na DO.
Praktické aplikácie
Najvacsou oblastou uplatnenia dialkoveho ovladania je nepochybne pohodlne ovladanie PC a v nom rozsirujucich zariadeni: TV a radio karty, CD, DVD, WinAmp ... Na tento ucel bolo zariadenie aj vyvinute a v drvivej vacsine aj pouzivane (kto by nechcel byt lenivy vstat k pocitacu na ktorom bezi film). Ale dobrou vlastnostou vsetkych programov typu Girder je moznost portovat aplikaciu napisanu cisto pre uzivatelske ovladanie mysou a klavesnicou do prostredia priemyselnej automatizacie. Napriklad Girder umoznuje dialkove ovladanie aj po TCP/IP sieti. Volbu typu prenosoveho media je mozne si zvolit a maximalne zjednodusit protokol. Tymto ziskame pocitac s vykonnym softwarom, ktory je umiestneny na riadenom pracovisku, ale jeho ovladanie moze byt urobene z uplne ineho miesta a najma s ovela jednoduchsim hardwarom (jednoducha klavesnica alebo jednocipovy mikropocitac).
Z hladiska softwaru staci priradit k externym povelom prislusne akcie na pocitaci PC (stlacenie klavesy, pohyby a klikanie
mysou, spustenie programu a pod.). Teda program, ktory povodne nebol urceny napr. na ovladanie cez RS232 sa tymto sposobom stane externe riaditelny. Najvacsou poziadavkou je asi iba potreba operacneho systemu Windows (ale su uz aj verzie a projekty pre Linux).Priestor pre dalsie mozne aplikacie nechavam pre citatelov, ale je ich dost : typu zabezpecovaci system objektov , riadenie nedostupnych embedded PC , bezdratove predlzenie riadenia a pod.
Ako obslužný software je freewarový Girder s pluginom IgorPlug.
Nastavenie jazyka: File>Settings>User Inference>

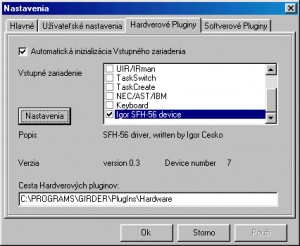

Kliknite na požadovaný plugin (IgorSFH-56 device) kliknite na Použiť . Znova kliknite na plugin a kliknite ne nastavenia
tu nastavte port ku ktorému je IR prímač pripojený všetko ostatné ostáva tak ako je

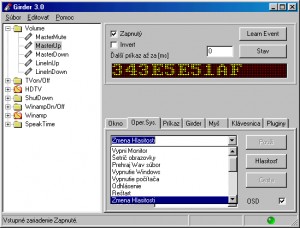

a tu už programujete požadované funkcie.
